TENDER WI614
Key Features
- Fast and Accurate (1/100000)
- Programmable up to 8 Formulas
- Adjustable Digital Filter
- RFI/EMI Screening
- Ultra Low Drift vs. Temperature and Time
- User-friendly
- Parametric or Manual Calibration
- Load Cell Error Detection
- Two Isolated digital inputs
- 5 PNP Outputs
- Isolated RS-485 (Modbus RTU) Output

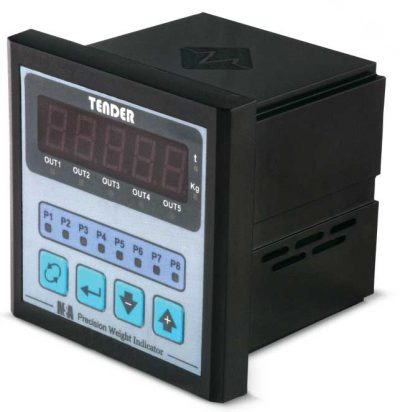

TENDER WI614
Weight indicator and controller with isolated RS-485

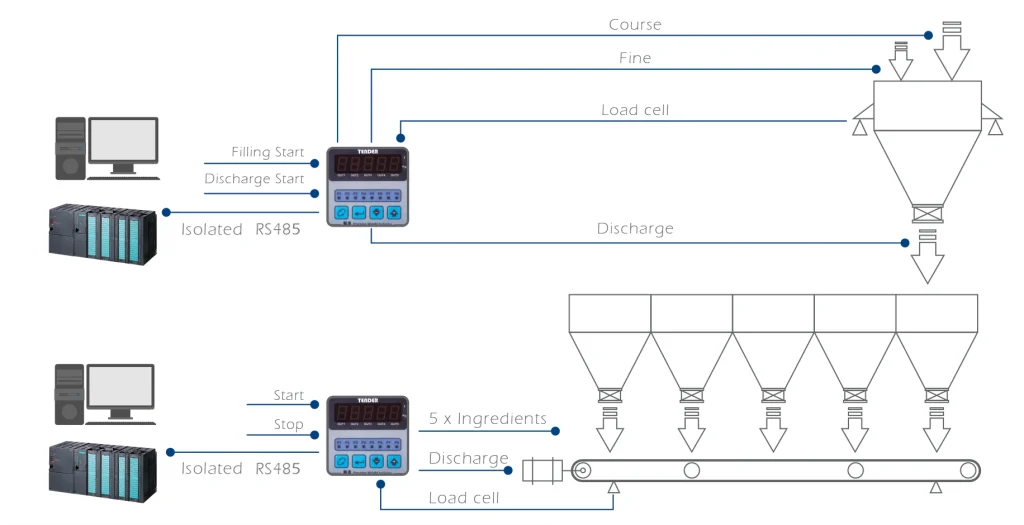

TENDER weight controller has been designed to control and indicate filling and batch dispensing processes. TENDER’s versatile structure and variant models make it an ideal and optimum cost solution for a broad variety of weighing applications. Benefiting from the highest interference resistance and long-term reliability, problem-free operation is guaranteed in the harshest environments. TENDER weight controller is also able to connect to central controller through de facto digital and analogue interfaces.
| Supply | 230 VAC, ±10%, < 3W |
| A/D Converter | 24-bit Sigma-Delta, Linearity < 0.0015 % FS |
| External Resolution , MAX | 1/100000 |
| Load Cell Excitation | 5 VDC, 100mA, 6x350ohm |
| Measurement Range | ±40 mV |
| Digital Filter Update Rate | 5 – 25 Hz |
| Display | 5 Digit – 7segment LED |
| Digital Outputs | 4 – PNP <1A |
| Digital Inputs | 230 VAC – Isolated |
| Baud Rates | 38400 ~ 115200 bps |
| Operation Temperature | -20 C to +60 C |
| Case | 96 x 96 x 72 mm, IP20 |
- Concrete batching plants
- Asphalt plants
- Filling machinery
- Packing machinery
- Belt weighing
- Check weigher
