TENDER WI604
Key Features
- Fast and Accurate (1/100000)
- Programmable up to 8 Formulas
- Adjustable Digital Filter
- RFI/EMI Screening
- Ultra Low Drift vs. Temperature and Time
- User-friendly
- Parametric or Manual Calibration
- Hold Peak Function
- Load Cell Error Detection
- 5 Output Relays
- Two Isolated digital inputs
TENDER WI604
Weight indicator and controller – 6 Series

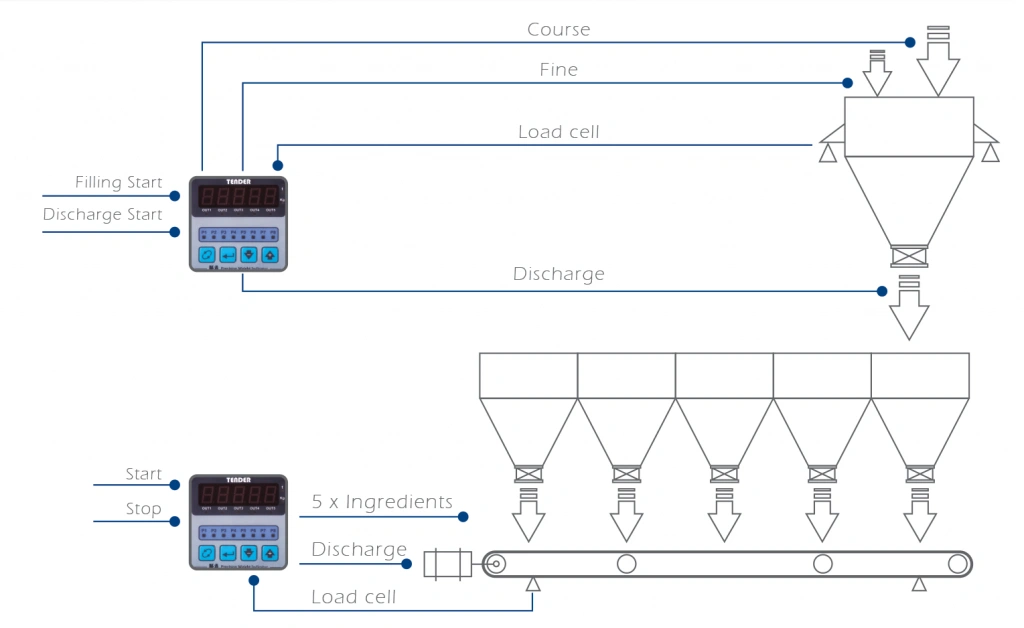

TENDER weight controller has been designed to control and indicate filling and batch dispensing processes. TENDER’s versatile structure and variant models make it an ideal and optimum cost solution for a broad variety of weighing applications. Benefiting from the highest interference resistance and long-term reliability, problem-free operation is guaranteed in the harshest environments. TENDER weight controller is also able to connect to central controller through de facto digital and analogue interfaces.
| Supply | 230 VAC, ±10%, < 3W |
| A/D Converter | 24-bit Sigma-Delta, Linearity < 0.0015 % FS |
| External Resolution , MAX | 1/100000 |
| Load Cell Excitation | 5 VDC, 100mA, 6x350ohm |
| Measurement Range | ±40 mV |
| Digital Filter Update Rate | 5 – 25 Hz |
| Display | 5 Digit – 7segment LED |
| Digital Outputs | 5-Relay <5A |
| Digital Inputs | 230 VAC – Isolated |
| Operation Temperature | -20 C to +60 C |
| Case | 96 x 96 x 72 mm, IP20 |
- Concrete batching plants
- Asphalt plants
