TENDER WI620
Key Features
- Fast and Accurate (1/100000)
- Programmable up to 8 Formulas
- Adjustable Digital Filter
- RFI/EMI Screening
- Ultra Low Drift vs. Temperature and Time
- User-friendly
- Parametric or Manual Calibration
- Load Cell Error Detection
- Two Isolated digital inputs
- Continuous RS-232 Output
TENDER WI620
Weight indicator with continuous RS-232

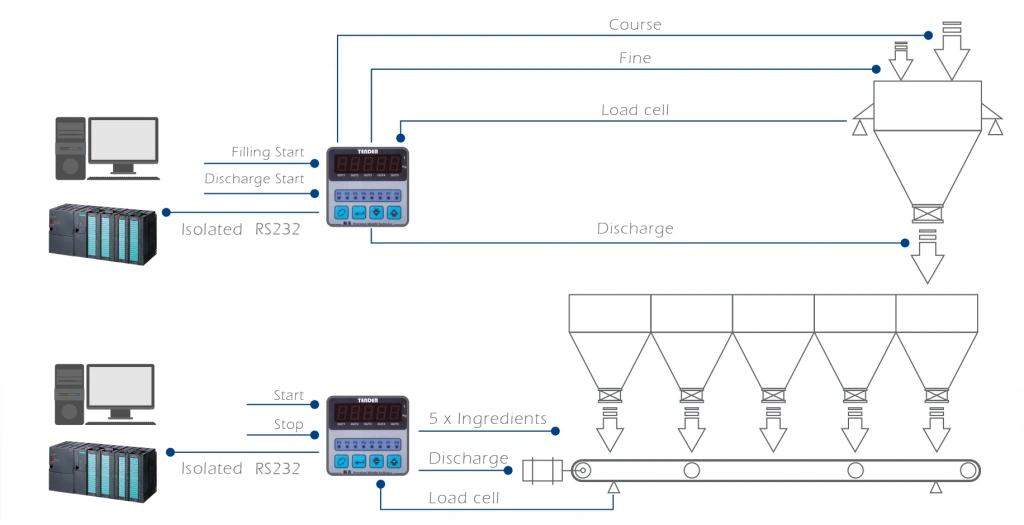

TENDER weight controller has been designed to control and indicate filling and batch dispensing processes. TENDER’s versatile structure and variant models make it an ideal and optimum cost solution for a broad variety of weighing applications. Benefiting from the highest interference resistance and long-term reliability, problem-free operation is guaranteed in the harshest environments. TENDER weight controller is also able to connect to central controller through de facto digital and analogue interfaces.
| Supply | 230 VAC, ±10%, < 3W |
| A/D Converter | 24-bit Sigma-Delta, Linearity < 0.0015 % FS |
| External Resolution , MAX | 1/100000 |
| Load Cell Excitation | 5 VDC, 100mA, 6x350ohm |
| Measurement Range | ±40 mV |
| Digital Filter Update Rate | 5 – 25 Hz |
| Display | 5 Digit – 7segment LED |
| Operation Temperature | -20 C to +60 C |
| Case | 96 x 96 x 72 mm, IP20 |
- Concrete batching plants
- Asphalt plants
- Filling machinery
- Packing machinery
- Oil , gas and petrochemical industries
