TRANCEL TMP-3100
Key Features
- Highly Accurate
- 0.1% Error Over a Dynamic Range of 1000 to 1
- RFI/EMI Screened
- High Speed Serial Interface
- Isolated Power and Serial Port
- Transient Suppression on RS-485 Line
- Compact Case with DIN-rail Mounting

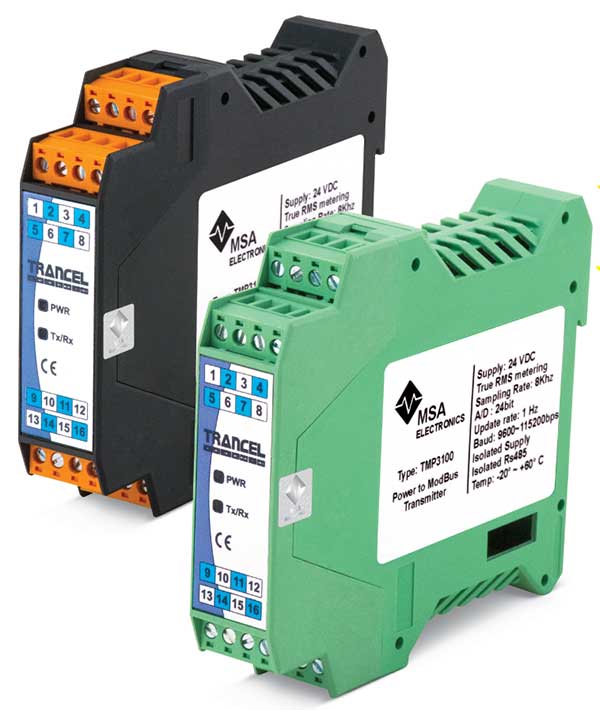

TRANCEL TMP 3100
3-phase Power to Modbus Transmitter

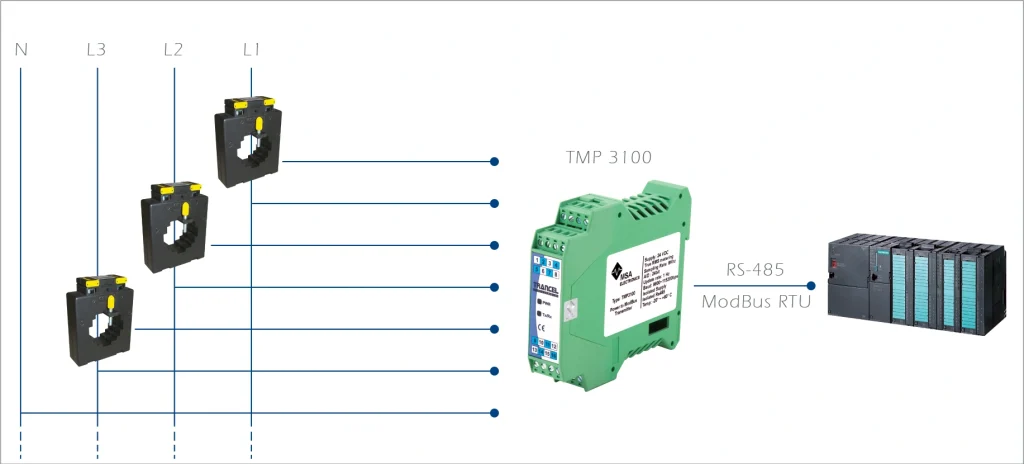

TRANCEL TMP 3100 has been designed to measure 3-phase power network parameters, and transmit them to PLC or SCADA, through RS-485. Six 24-bit A/D converters with a high speed DSP make the TMP 3100 ideal for extremely accurate power metering applications.
| Supply | 21.6 – 26.4 VDC, < 1W |
| Isolated Voltage | 1.5 KV RMS, <1min |
| A/D Converter | Six 24-bit with 8 kSPS |
| External Resolution , MAX | 0.1 Volt (Range 0-350 VRMS) |
| Current Resolution | 0.1 Ampere (Range 0-1000 A) |
| Range | -200 C – +800 C |
| Frequency Resolution | 0.1 Hz (Rang 10-400Hz) |
| Baud Rates | 9600-19200-38400-115200 bps– Dipswitch Configurable |
| Address Range | 1 … 32 – Dipswitch Configurable |
| Operation Temperature | -20 C to +60 C |
| Case | 96 x 96 x 72 mm, IP20 |
- Concrete batching plants
- Asphalt plants
- Filling machinery
- Packing machinery
- Oil , gas and petrochemical industries
