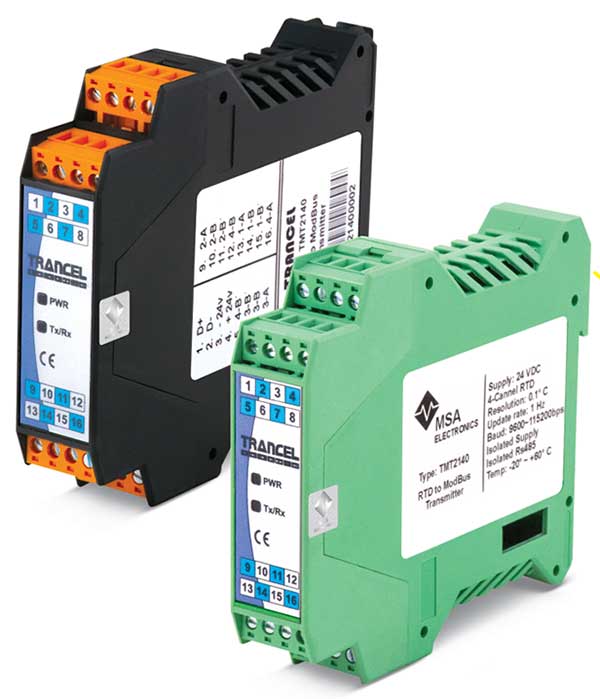

TRANCEL TMT-2140
Key Features
- High Accuracy (±0.2oC)
- Lead Resistance Compensation
- Input Surge-voltage Protection
- Sensors Wiring Burned-out Detection
- RFI/EMI Screened
- High Speed Serial Interface
- Isolated Power and Serial Port
- Transient Suppression on RS-485 Line
- Compact Case with DIN-rail Mounting
TRANCEL TMT 2140
RTD to modbus transmitter TMT 2140
TRANCEL TML 2140 has been designed to provide a highly reliable isolated connection between (up to four) RTD and PLC through RS-485. Linearizing the measurement signal with extreme accuracy makes it ideal for the most exacting temperature measuring applications. Benefiting from lead resistance compensation and the highest interference resistance, problem-free application is guaranteed with long transfer distances in the harshest environments.
| Supply | 21.6 – 26.4 VDC, < 1W |
| Isolated Voltage | 1.5 KV RMS, <1min |
| A/D Converter | 16-bit Sigma-Delta |
| External Resolution , MAX | 0.1o C |
| RTD Type | PT100, 2,3-wire, (a = 0.00385) |
| Range | -200 C – +800 C |
| Serial Port | RS-485 2-wire, Isolated, Modbus (RTU) |
| Baud Rates | 9600-19200-38400-115200 bps– Dipswitch Configurable |
| Address Range | 1 … 32 – Dipswitch Configurable |
| Operation Temperature | -20 C to +60 C |
| Case | 96 x 96 x 72 mm, IP20 |
- Asphalt plants
- Packing machinery
- Oil , gas and petrochemical industries
