TRANCEL TML-1210
Key Features
- Fast and Highly Accurate (1/100000)
- Adjustable Digital Filter
- RFI/EMI Screened
- Parametric or Manual Calibration
- User-friendly
- Ultra Low Drift vs. Temperature and Time
- Load Cell Error Detection System
- High Speed Serial Interface
- Isolated Power and Serial Port
- Transient Suppression on RS-485 Line
- Compact Case with DIN-rail Mounting

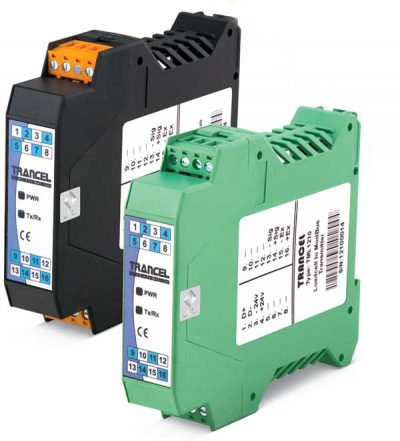

TRANCEL TML 1210
Load cell to modbus transmitter

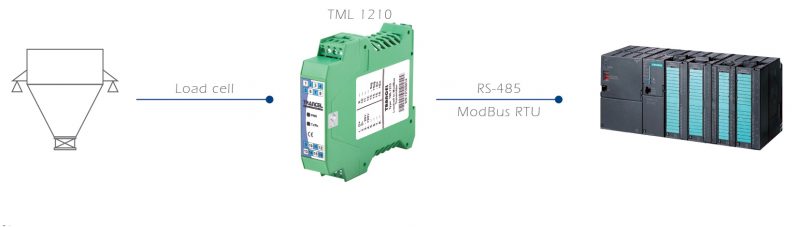

TRANCEL (TML 1210) has been designed to provide a highly reliable and fast, isolated connection between load cell and PLC, through RS-485. It is ideal for fast filling, batch dispensing, and dynamic weighing applications. Benefiting from the highest interference resistance and long-term reliability, problem-free operation is guaranteed in the harshest environments.
| Supply | 21.6 – 26.4 VDC, < 1W |
| Isolated Voltage | 1.5 KV RMS, <1min |
| A/D Converter | 24-bit Sigma-Delta, Linearity < 0.0015 % FS |
| External Resolution , MAX | 1/100000 |
| Load Cell Excitation | 5 VDC, 120mA, 6x350ohm |
| Digital Filter Update Rate | 5 – 200 Hz |
| Serial Port | RS-485 2-wire, Isolated, Modbus (RTU) |
| Baud Rates | 9600-19200-38400-115200 bps – Dipswitch Configurable |
| Address Range | 1 … 32 – Dipswitch Configurable |
| Operation Temperature | -20 C to +60 C |
| Case | 96 x 96 x 72 mm, IP20 |
- Concrete batching plants
- Asphalt plants
- Filling machinery
- Packing machinery
- Oil , gas and petrochemical industries
- Belt weighing
- Checkweigher
